Aluminum Provider

Facilities and expertise to provide your aluminum services

RENO produces a full range of monolithic products for aluminum furnace applications including furnace hearths, lower walls, ramps, troughs, and filter boxes as well as precast big blocks. Our AluSHIELD product line exhibits excellent non-wetting properties for aluminum contact areas. With our technical support, engineering and precast capabilities RENO can supply all of your furnace needs.

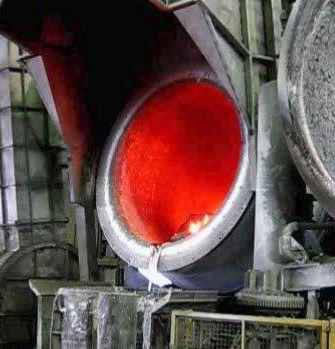

Aluminum Furnace

RENO has the materials to make your melter or holder go the distance. If you are looking for a trouble free lining then RENO has the answers. Through information gathering and partnering with the customer, we can custom tailor a refractory lining that is made just for your situation. RENO has all of the products needed to build a bulletproof aluminum melter or holder.

troughing applications

Troughing

RENO takes a multi stage approach to troughing at the cast house. For the tap trough section, we use our RENO Guard AL which can handle thermal shock and all the abrasion your melter or holder can throw at it. For the remainder of the troughing system, we employee either our Locem FS AL for the ultimate in thermal shock resistance or our AluSHILED 70 QH which affords you thermal shock resistance along with the ability to take a hit. For those areas that need a special erosion product without stainless steel fibers, our AluSHIELD NC 808 SC will solve any problems you may have.

over the road ladle applications

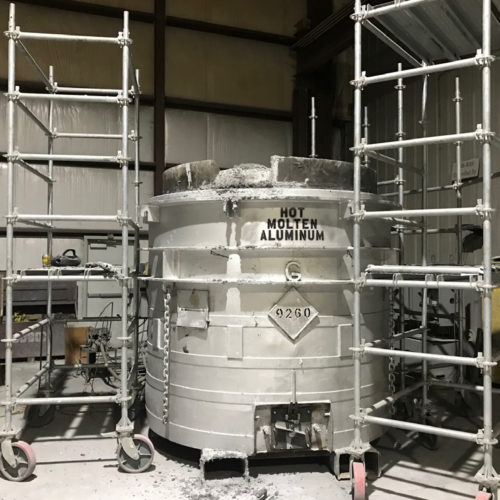

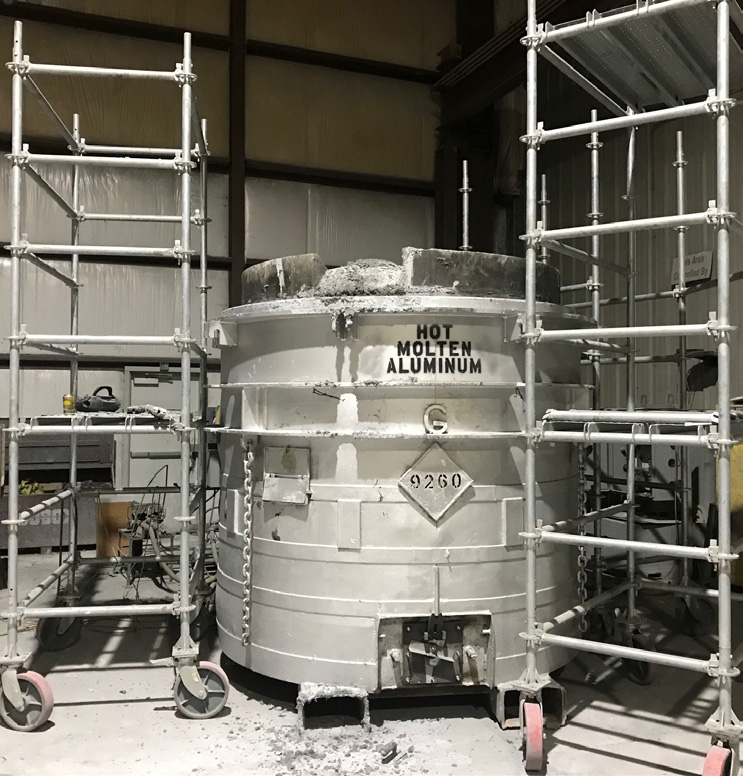

Over the Road Ladle

Over the road ladles present an interesting challenge for refractories – they must be highly insulating, but also dense enough to maintain thickness from the erosion of filling and emptying. RENO has developed a proven solution to this perfect storm by combining our Ladle Cast 100 with a thin layer of RENO NC Gun 60 LW on the walls. For the floor, we use the same insulating layer of RENO NC Gun 60 LW but for the working lining we use our robust Locem 3160 AL. This lining combination will give you years of trouble free service.

Over the Road Ladle applications

Furnace tool applications

Furnace Tools

furnace tool applications

ApplicationsAluminum Product Listing
SUBHEARTH ALUSHIELD 45QH*
METAL CONTACT, LOWER SIDEWALLS HEARTHRENO ELECTROPUMP™ 52 AR/AL
RENO CAST LOCEM 31/60 AL
AluShield 70 QH*
ALUSHIELD 80 QH*
NON_METAL CONTACT UPPER WALLS, ROOFRENO CAST 65 XCLC (1.5 Aggregate)
JET CAST NC 70*
RENO ELECTROCAST™ 70
RAMPS, BELLY BANDSALUSHIELD NC 808 SC*
REFCAST LOCEM 7020
RENO ELECTROCAST 52™ AR/AL
SILLS, JAMBS, LINTELSRENO Cast 65 XCLC (1.5 Aggregate)
REFCAST LOCEM 7020
ALUSHIELD NC 808 SC*
TROUGHS, TRAYS, PANSREFCAST LOCEM 7020
REFCAST LOCEM FS/AL
COATINGfor TrOUGHS, TOOLSRENO COAT IT AL
RENO ELECTROCOAT™ 75 SIC
FLOORS, APRONSREFCAST HOT FLOOR
OTR LADLESRENO LADLE CAST AL 100
REFCAST LOCEM 3160 AL
HIGH WEAR, IMPACT ZONESRENO GUARD
RENO GUARD AL
ROTARY DROSS FURNACEALUSHIELD NC 65*
PRESSURE POUR BACKUP INSULATIONRENO SIL 1.0
QUICK REPAIRS, PATCHINGMACH GUN 60P*
LIQUIBOND 60*
LIQUIBOND 86*

Aluminum Services

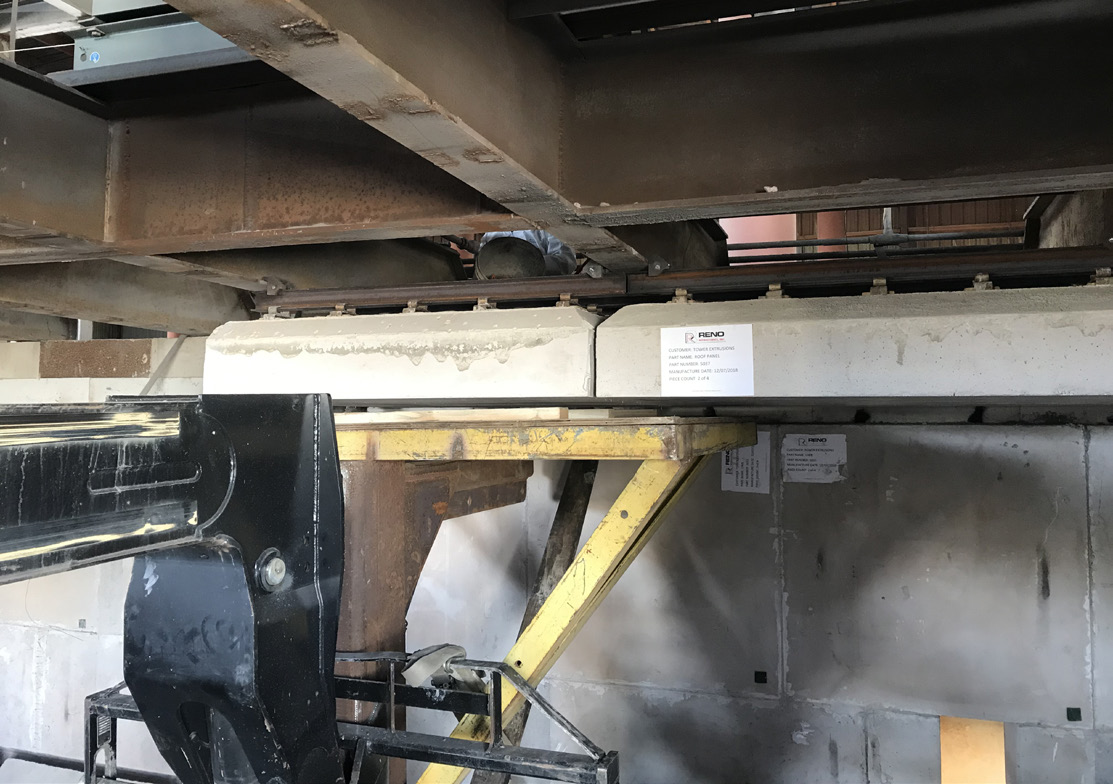

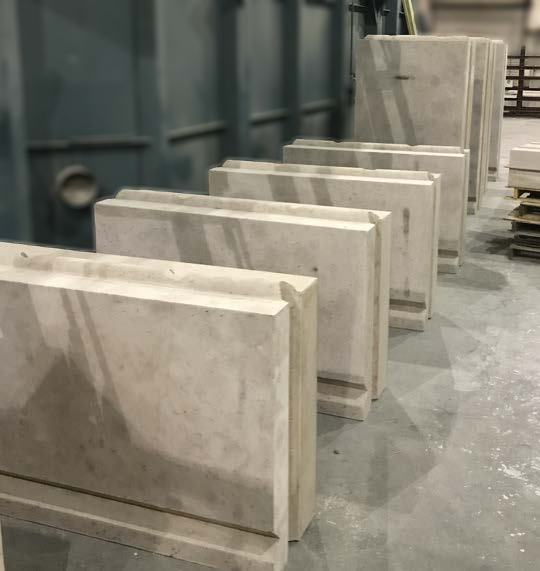

We handle aluminum services in a number of ways at RENO Refractories, Inc.. Below is a gallery showcasing some of the materials we handle and the capabilities of our production line. ClickTouch the images to zoom.
